Starter Bars Walls

Advanced Takeoff Automation for Wall Starter Bars

Eliminate the guesswork when calculating starter dowels from footings or grade beams into your CMU or concrete walls. The Starter Bars Walls Script by CivilScript Labs turns a simple linear measurement into a precise rebar detailing tool. Whether you need automated mathematical embedment or strict manual overrides, this script adapts instantly to your structural plans.

Key Features & Output:

• Universal Unit Conversion: Instantly toggle your final takeoff summary between Imperial and Metric systems. Export your data in Yards (YD), Feet (FT), Centimeters (CM), Meters (M), Pounds (LB), or Tons.

• Smart Auto-Calculation Mode: Automatically computes exact dowel lengths by factoring in the foundation depth (Member Depth), the distance to finished grade (Length 0′-0 To TOF), and precise lap splice requirements above grade. Select from standard 36db or 48db splices, or input a custom length.

• Manual Override Mode: Features a dynamic Manual toggle that instantly bypasses automatic depth calculations, allowing estimators to input a specific total bar length for highly customized scenarios.

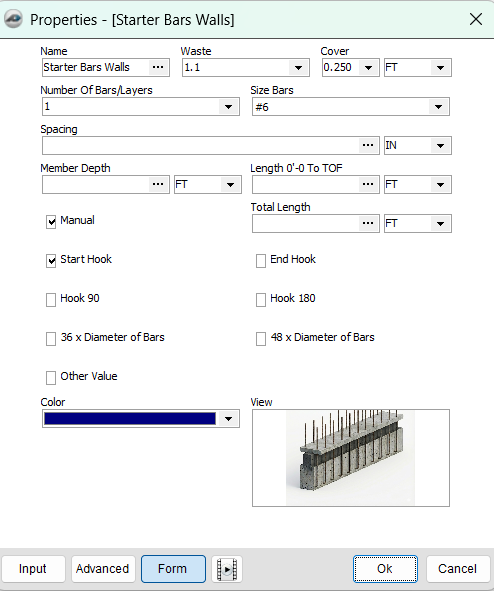

• Advanced Hook & Layer Detailing: Granular control over the number of reinforcement layers. Configure both Start Hooks and End Hooks (90° or 180°)—perfect for dowels terminating inside top slabs, bond beams, or under window sills.

• Additional Rebar Tool: Includes the flexibility to manually drop in specific, localized starter bars anywhere along your linear takeoff to account for structural anomalies.

• Automated Setup: Includes our custom .exe installer for a seamless, one-minute integration into your PlanSwift local library.
