Slab

Advanced Takeoff Automation for Concrete Slabs

Stop struggling with manual area calculations and complex reinforcement grids. The Slab Script by CivilScript Labs turns your PlanSwift area takeoff into a complete estimating engine. Simply trace your slab, define your reinforcement parameters, and let the tool instantly generate all required material quantities for both Slabs on Grade (SOG) and Suspended deck applications.

Key Features & Output:

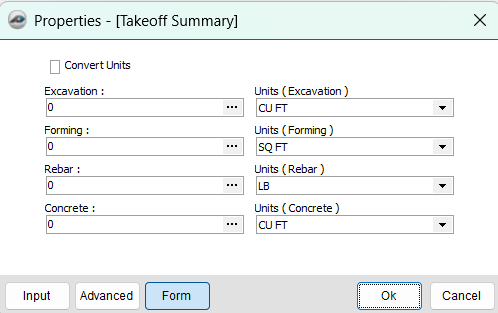

• Universal Unit Conversion: Instantly toggle your final takeoff summary between Imperial and Metric systems. Export your data in Yards (YD), Feet (FT), Centimeters (CM), Meters (M), Pounds (LB), or Tons.

• Smart Excavation (SOG): Includes an Excavation SOG toggle to automatically compute earthwork volumes required to reach your desired subgrade elevation based on the slab’s footprint.

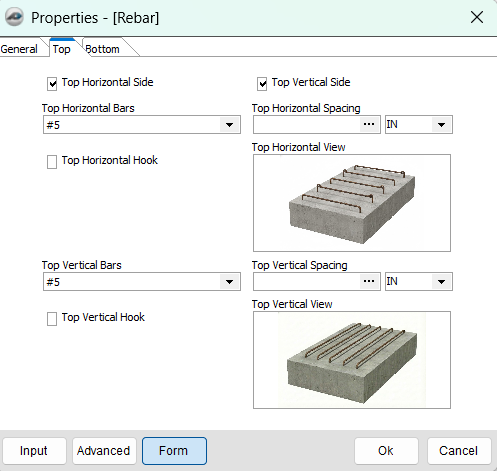

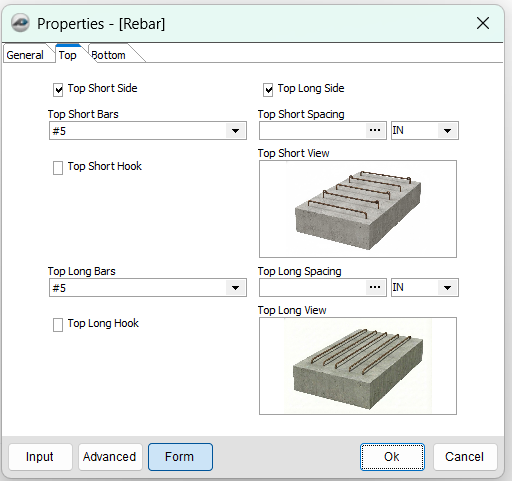

• Advanced Rebar Detailing: Granular control over double-layer reinforcement (Top and Bottom mats). Define horizontal and vertical bar sizes, spacing, and custom end hooks.

• Dynamic Formwork & Prep Area: Features a Suspended Slab toggle. When activated, it calculates the complete bottom deck forming and shoring area. When deactivated (for SOG), it outputs the total surface metrics needed for subgrade preparation, vapor barriers, and perimeter edge forming.

• Net Concrete Volume: Automatically computes precise cubic yardage based on your drawn area, specified thickness, and custom waste percentages, automatically factoring in any volume deducted by your openings.

• Automated Setup: Includes our custom .exe installer for a seamless, one-minute integration into your PlanSwift local library.
