Isolated Footing

Advanced Takeoff Automation for Isolated Footings

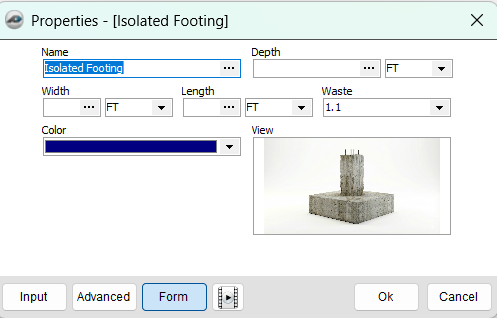

Stop measuring individual components manually. The Isolated Footing Script by CivilScript Labs transforms your PlanSwift interface into a parametric estimating engine. By defining the geometry of your footing just once, the tool simultaneously generates all required material quantities, eliminating human error and saving hours of repetitive calculation.

Key Features & Output:

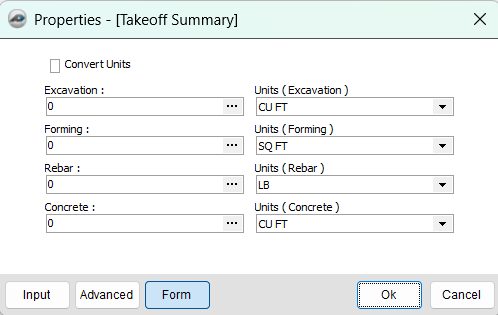

• Universal Unit Conversion: Instantly toggle your final takeoff summary between Imperial and Metric systems. Export your data in Yards (YD), Feet (FT), Centimeters (CM), Meters (M), Pounds (LB), or Tons depending on your project’s requirements.

• Advanced Excavation Metrics: Automatically computes true excavation volumes by factoring in not just the footing geometry, but also your customizable working space clearance and soil slope angles.

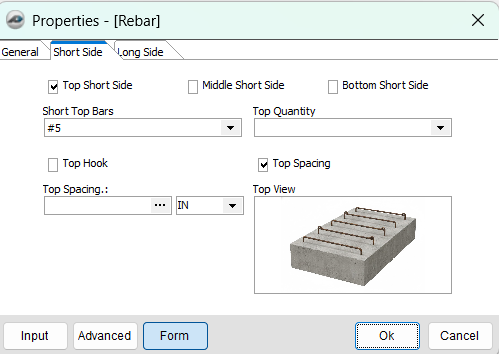

• Rebar Detailing: Granular control over top bars, bottom bars, and middle bars spacing, concrete cover, and custom end hooks to output the exact steel weight.

• Formwork Area: Calculates the exact forming area required for the footing perimeter automatically.

• Concrete Volume: Automatically computes precise concrete volumes based on footing dimensions, factoring in your custom waste percentages.

• Automated Setup: Includes our custom .exe installer for a seamless, one-minute integration into your PlanSwift local library.
